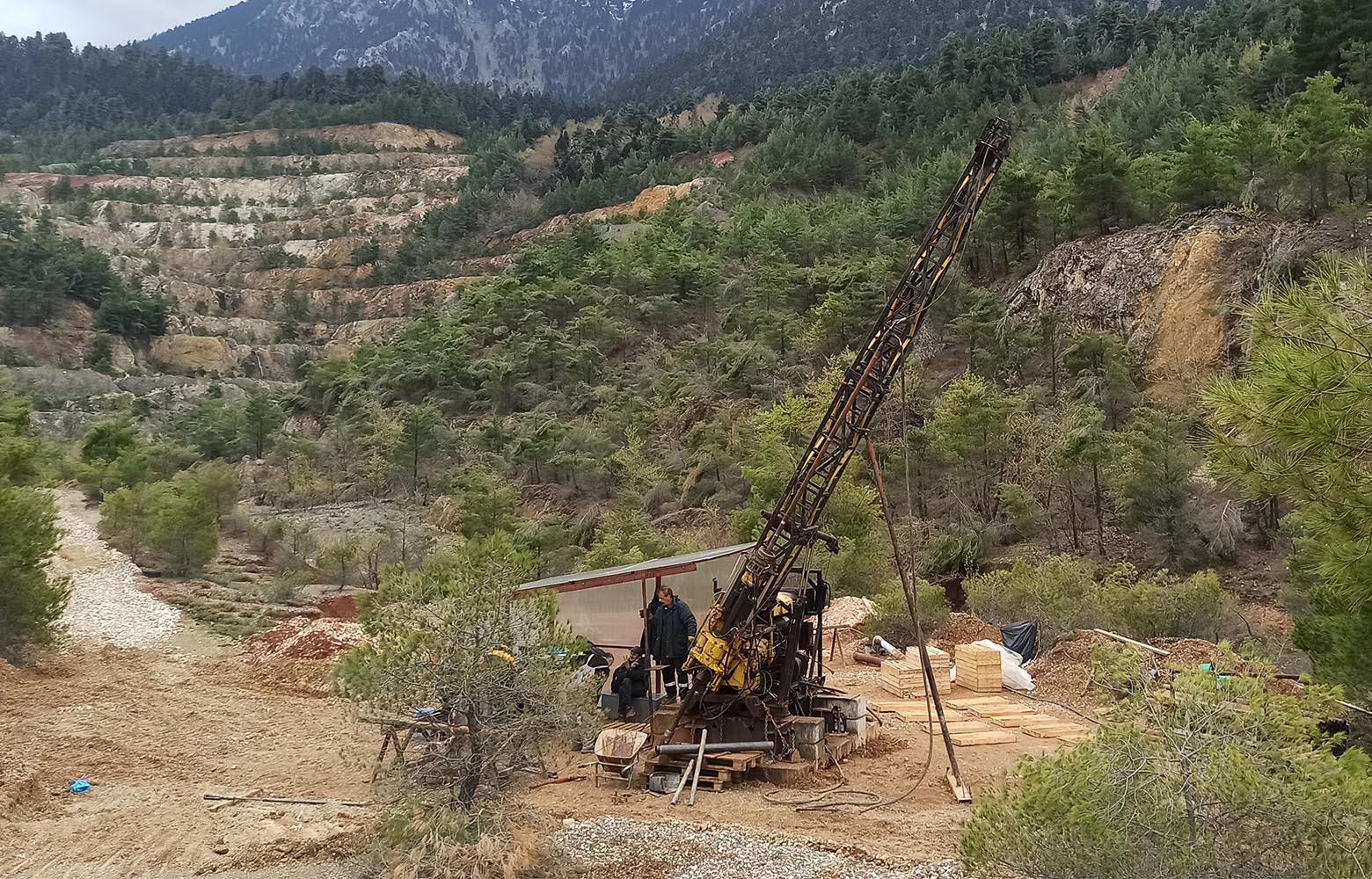

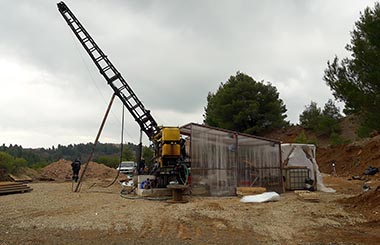

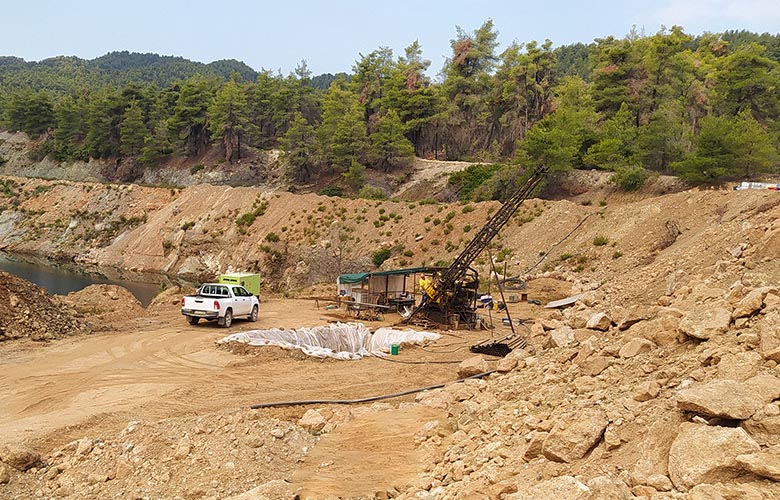

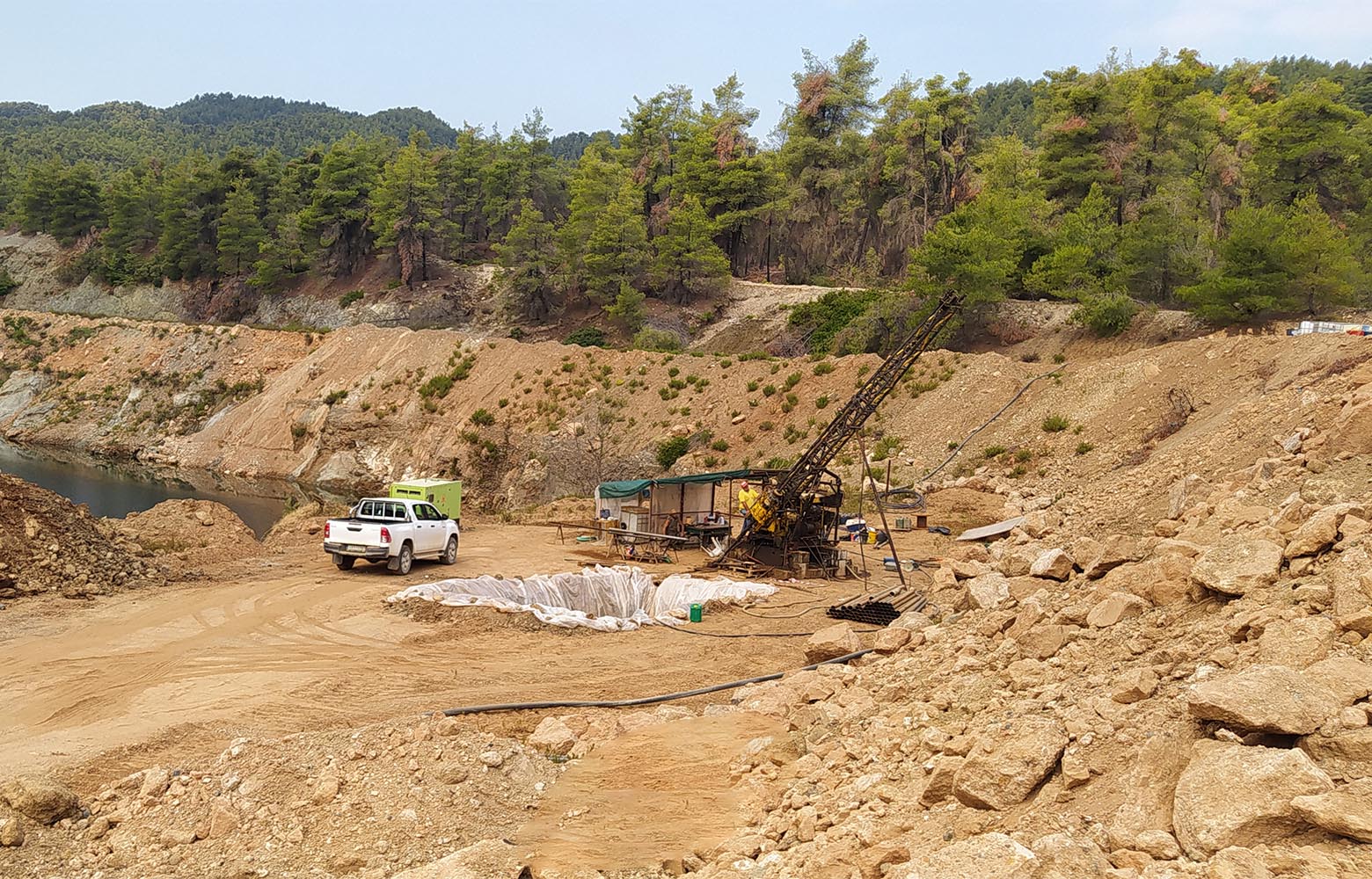

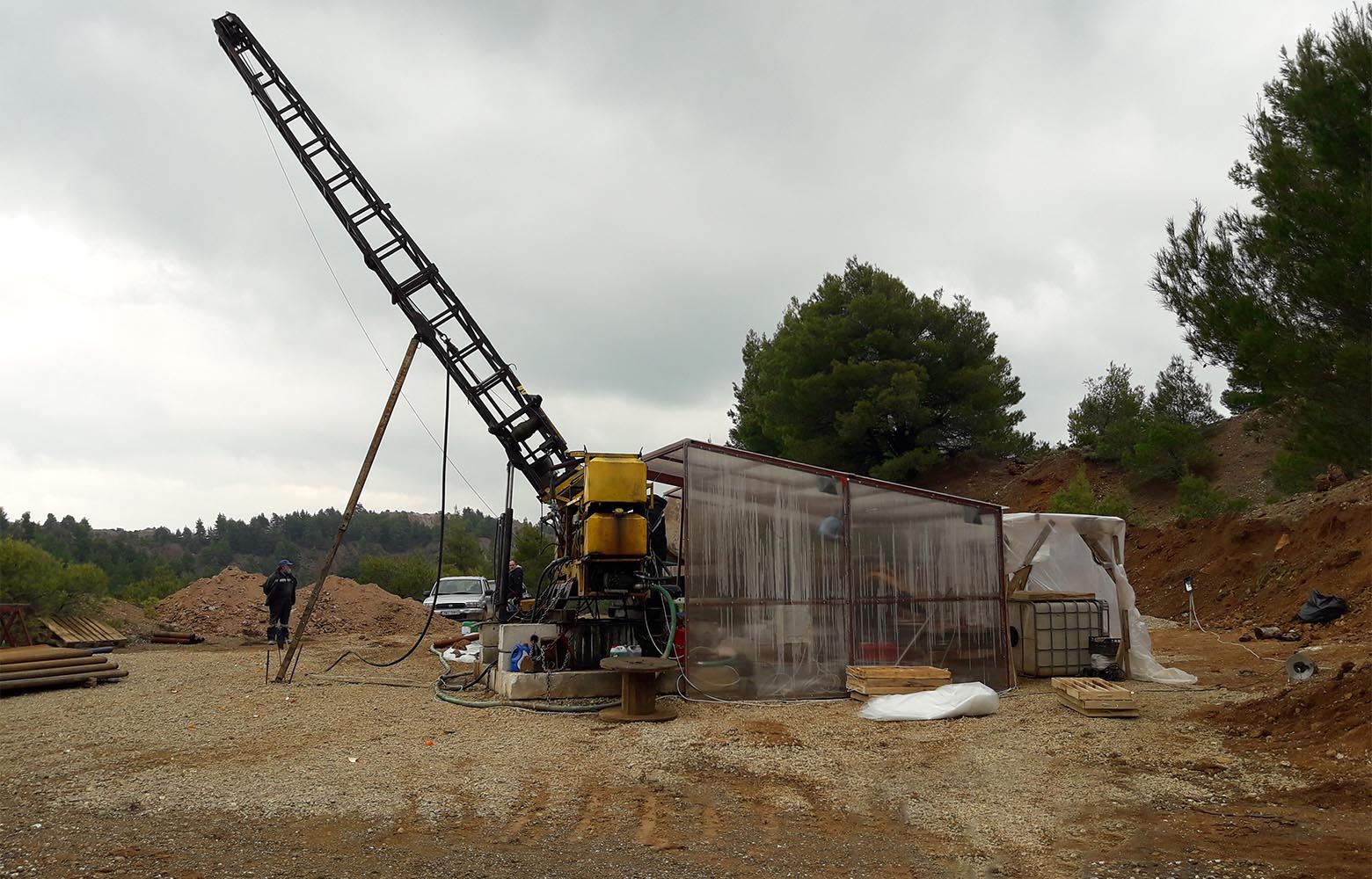

JKS Boyles 37A Rig Details

JKS Boyles 37A JKS Boyles 37AJKS Boyles 37A

Rig Description

---

  • Wireline
  • Down-the-hole
  • Truck, skid
  • HQ, HQ3, NQ, NQ

JKS Boyles 37A Rig Details Specs

  • Deutz F5L-912 / 66kW (88hp) RPM : 2500 Diesel turbocharged Cooling : water Rod holding force : 100kN Mast pull force : 75kN Hydraulic chuck Boyles : 12HH Mud pump : Piston pump 110lt/40bar Drilling Capacity 690m (ΝQ) Wireline hoist : 2200m Max drum pull : 9.3kN Drilling angle : 55 o -90 o
  • RPM : 2500
  • Diesel turbocharged Cooling : water Rod holding force : 100kN Mast pull force : 75kN Hydraulic chuck Boyles : 12HH Mud pump : Piston pump 110lt/40bar Drilling Capacity 690m (ΝQ) Wireline hoist : 2200m Max drum pull : 9.3kN Drilling angle : 55 o -90 o
  • Cooling : water
  • Rod holding force : 100kN
  • Mast pull force : 75kN
  • Hydraulic chuck Boyles : 12HH
  • Mud pump : Piston pump 110lt/40bar Drilling Capacity 690m (ΝQ)
  • Wireline hoist : 2200m
  • Max drum pull : 9.3kN
  • Drilling angle : 55 o -90 o
