JKS Boyles 17

JKS Boyles 17JKS Boyles 17JKS Boyles 17

Rig Description

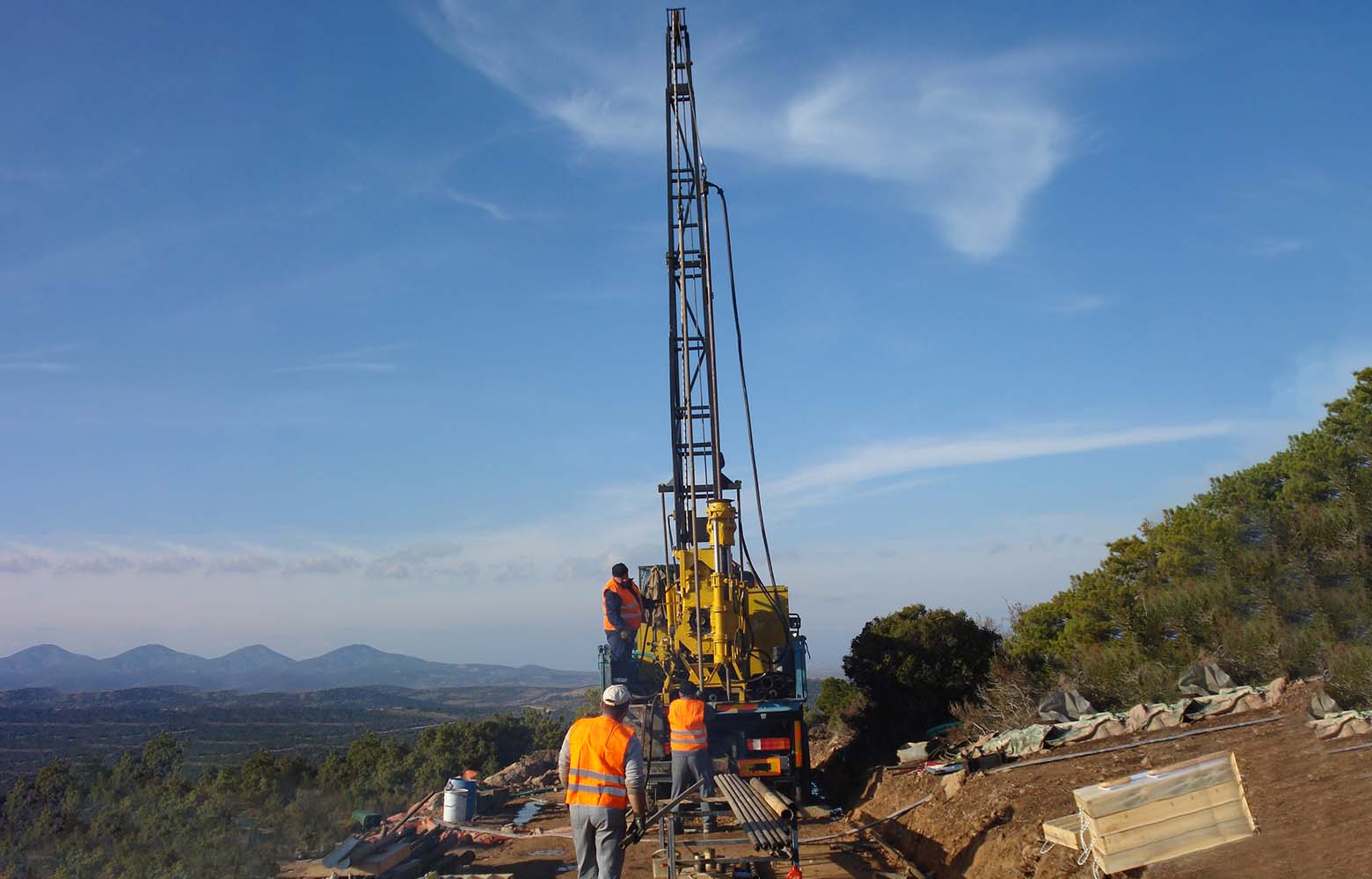

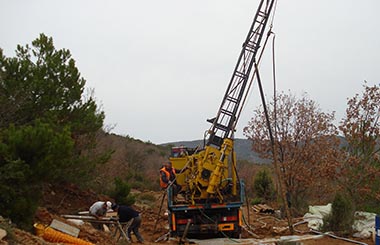

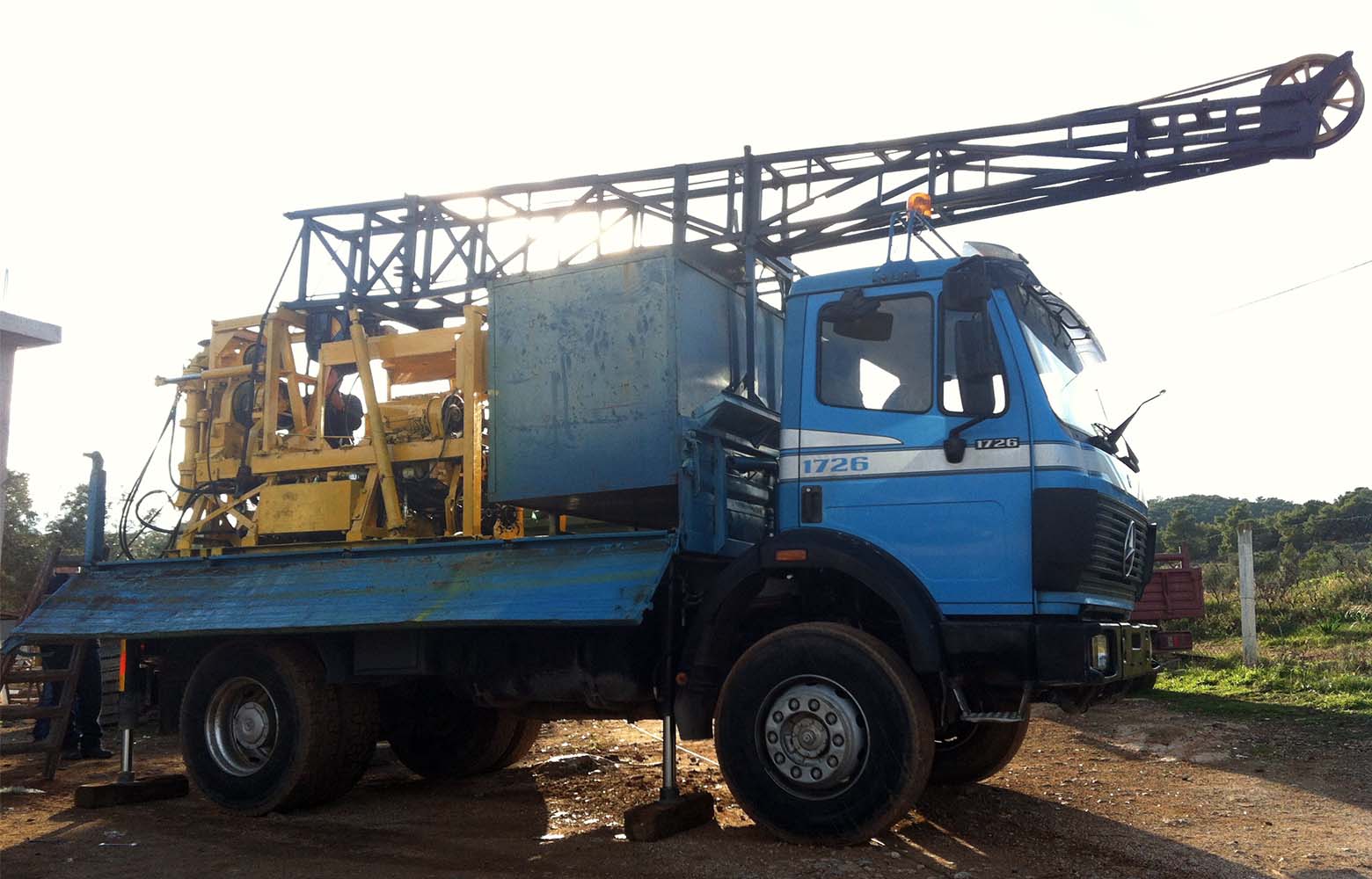

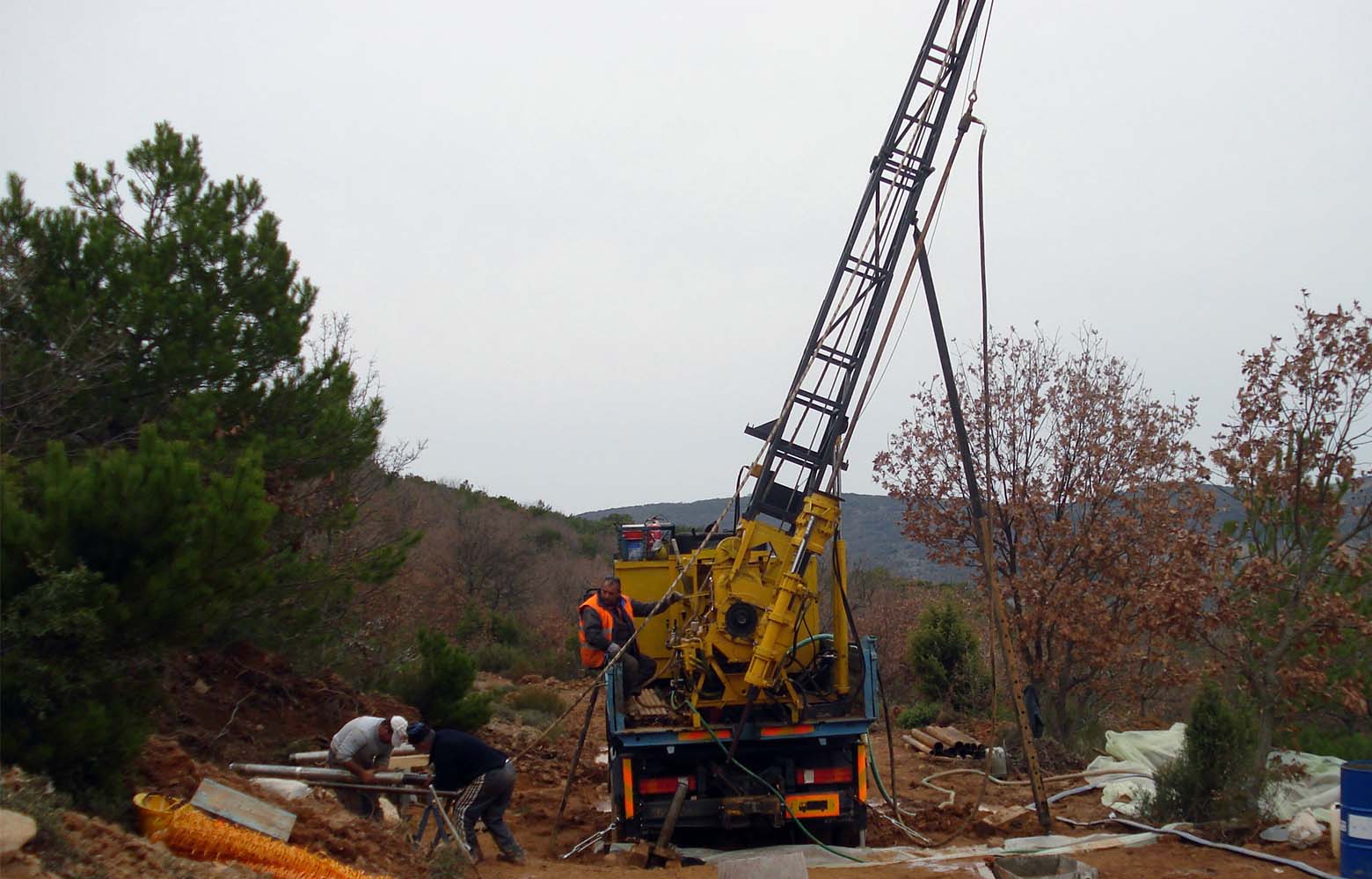

The JKS Boyles 17 surface core drilling rig is low power, yet flexible solution. Mounted optionally on truck or on its own skids can be installed easily in open landscapes or even on mine benches to drill low- to medium-depth boreholes.

  • Wireline
  • Down-the-hole
  • Truck, skid
  • HQ, HQ3, NQ, NQ

JKS Boyles 17 Specs

  • Deutz F4L-913 / 66kW (88hp)
  • RPM : 2500
  • Diesel turbocharged
  • Cooling : water
  • Rod holding force : 55kN
  • Mast pull force : 40kN
  • Hydraulic chuck Boyles 234HH
  • Mud pump : Piston pump 110lt/40bar
  • Drilling Capacity : 500m (ΝQ)
  • Wireline hoist : 600m
  • Drilling angle : 55 o to -90 o
