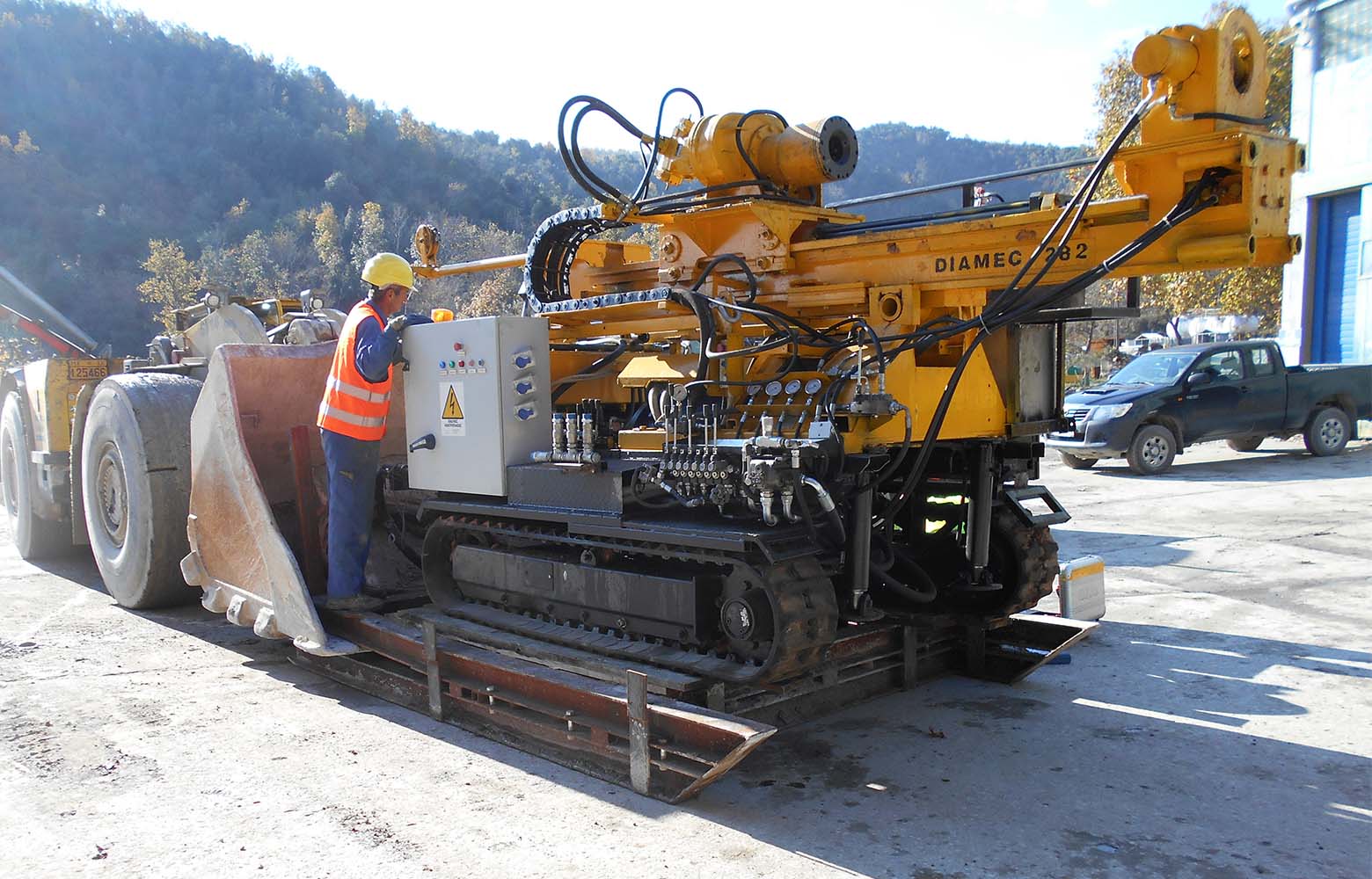

Atlas Copco Diamec 282

Atlas Copco Diamec 282Atlas Copco Diamec 282Atlas Copco Diamec 282

Rig Description

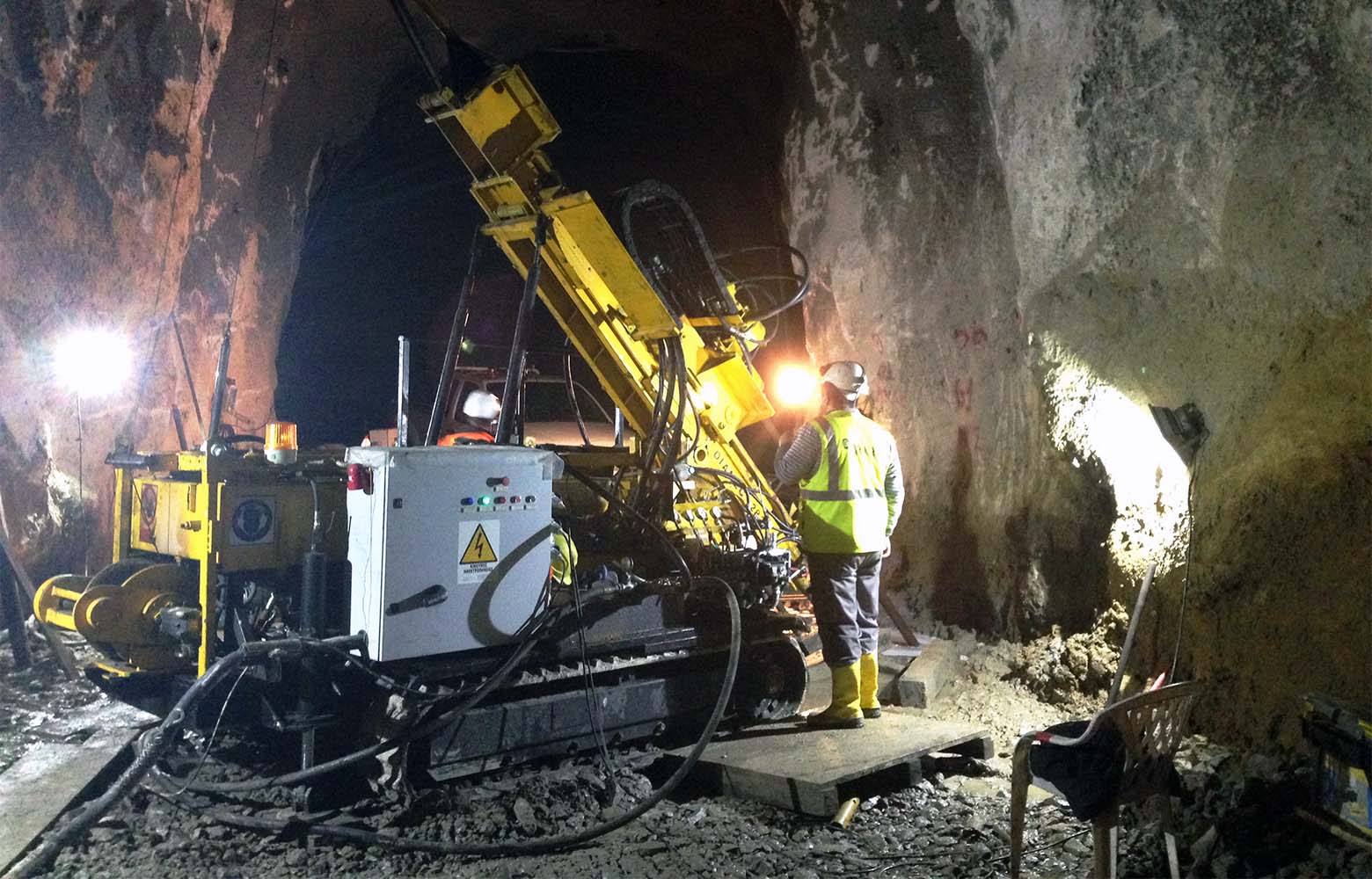

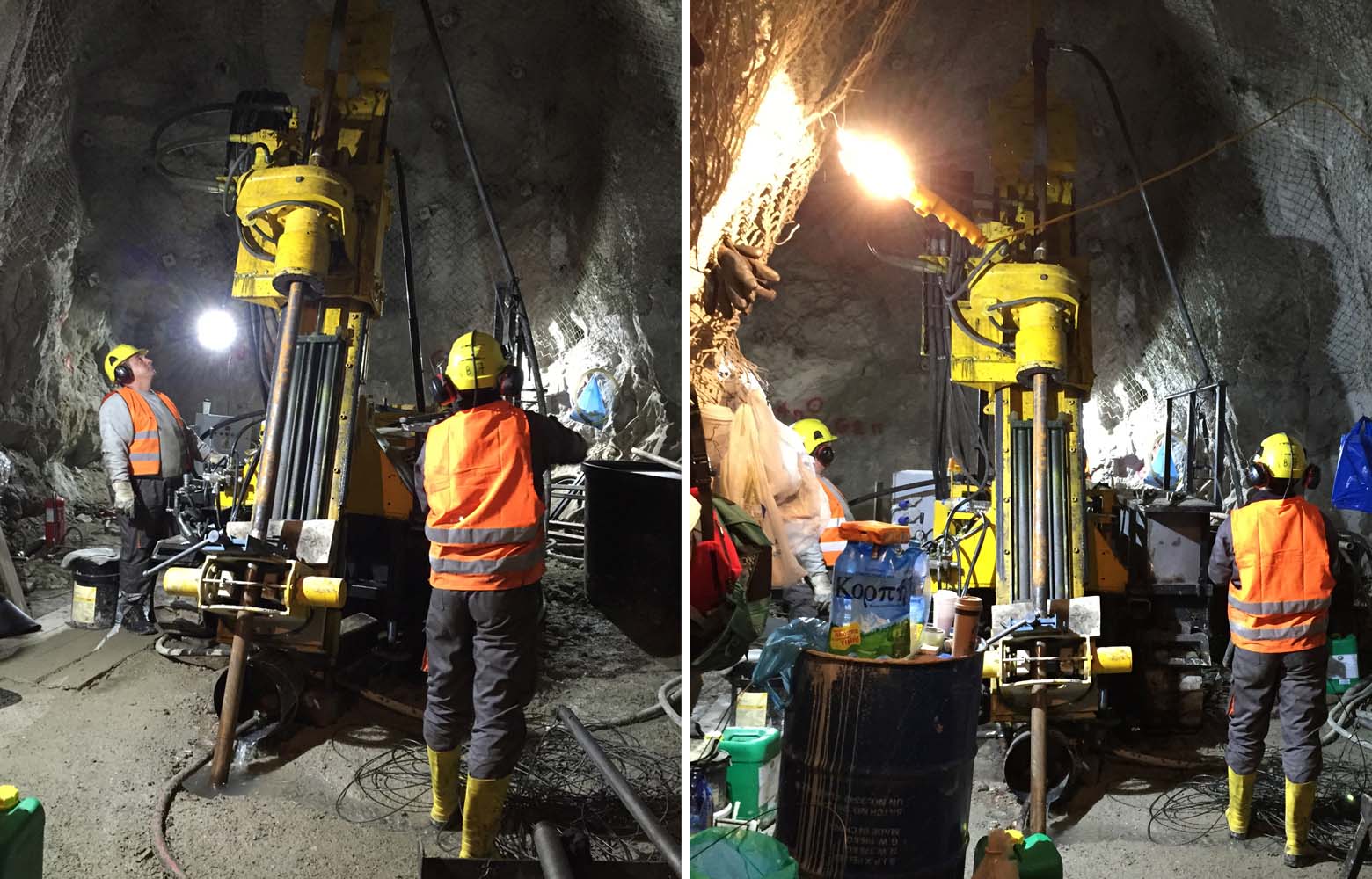

Diamec 282 is an all-hydraulic diamond core drill ideal for prospecting drilling below ground. Easy to handle and operate, the 282 can be set up to drill in different directions, both upward and downward facing.

  • Wireline
  • Crawler
  • PQ, HQ, NQ

Atlas Copco Diamec 282 Specs

  • Electric engine 75kW (100hp)
  • RPM : 1450
  • Electrical motor
  • Cooling : water type oil cooler
  • Max pull force : 90kN
  • Feed length : 1750mm
  • Max torque : 1950Nm
  • Rotation speed : 1200r/min
  • Mud pump : Boyles BBP 40Drilling Capacity: 800m (ΝQ)
  • Wireline hoist : 1200m
  • Drilling angle : 90 o to -90 o
