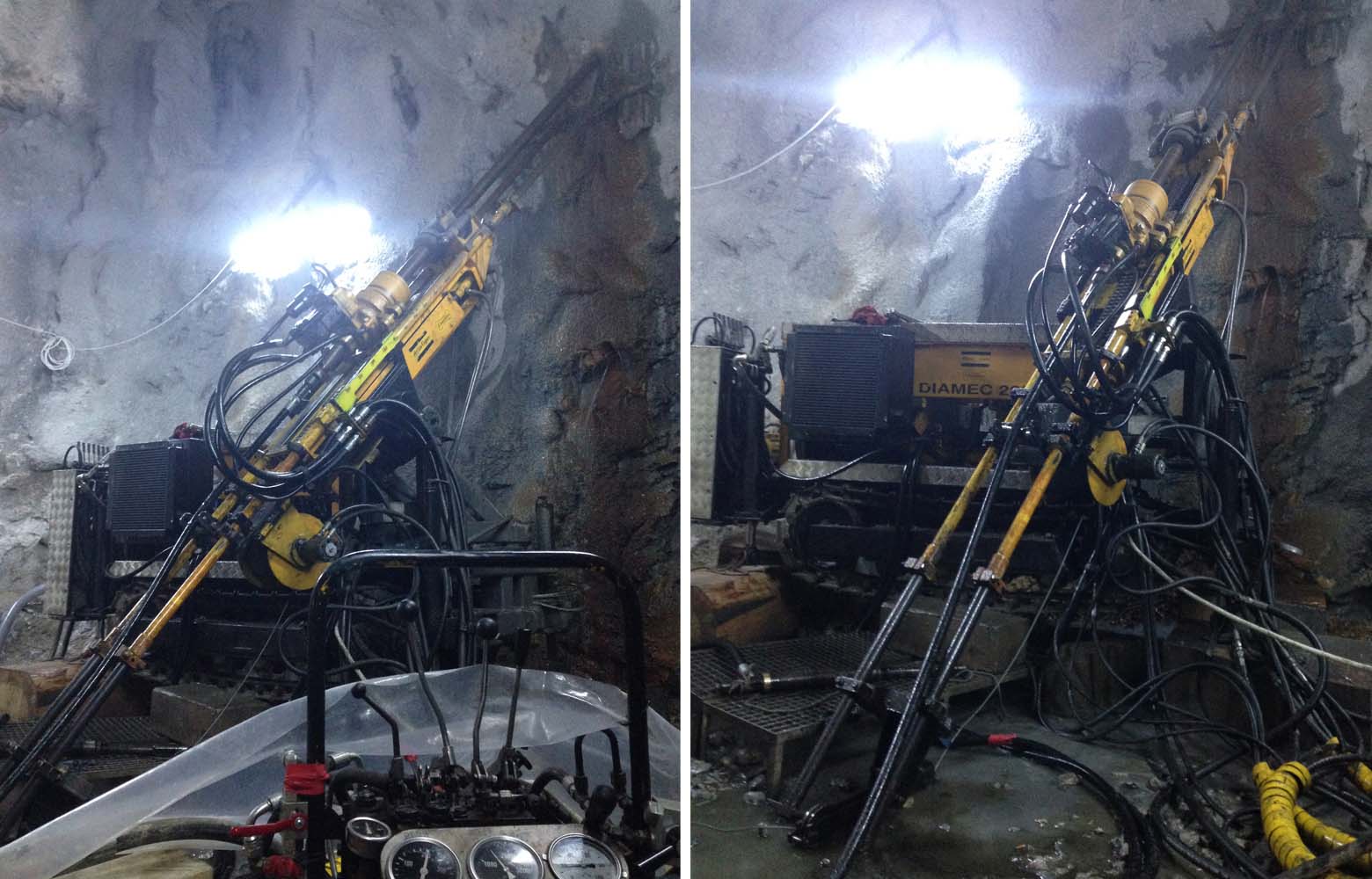

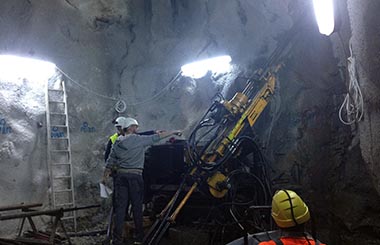

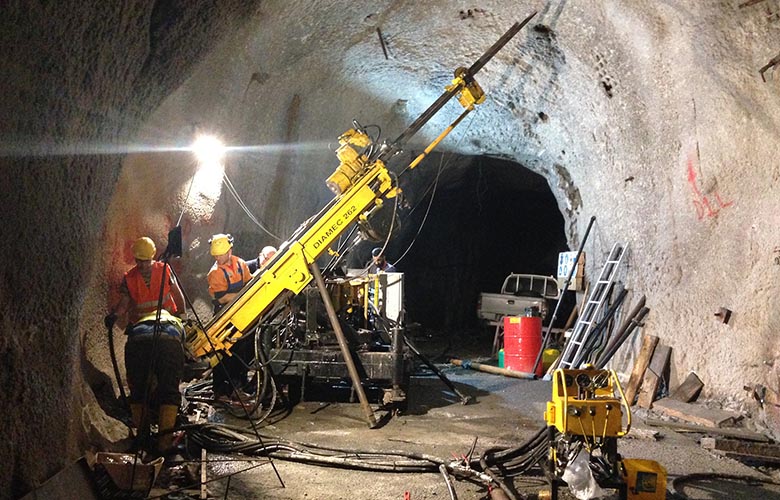

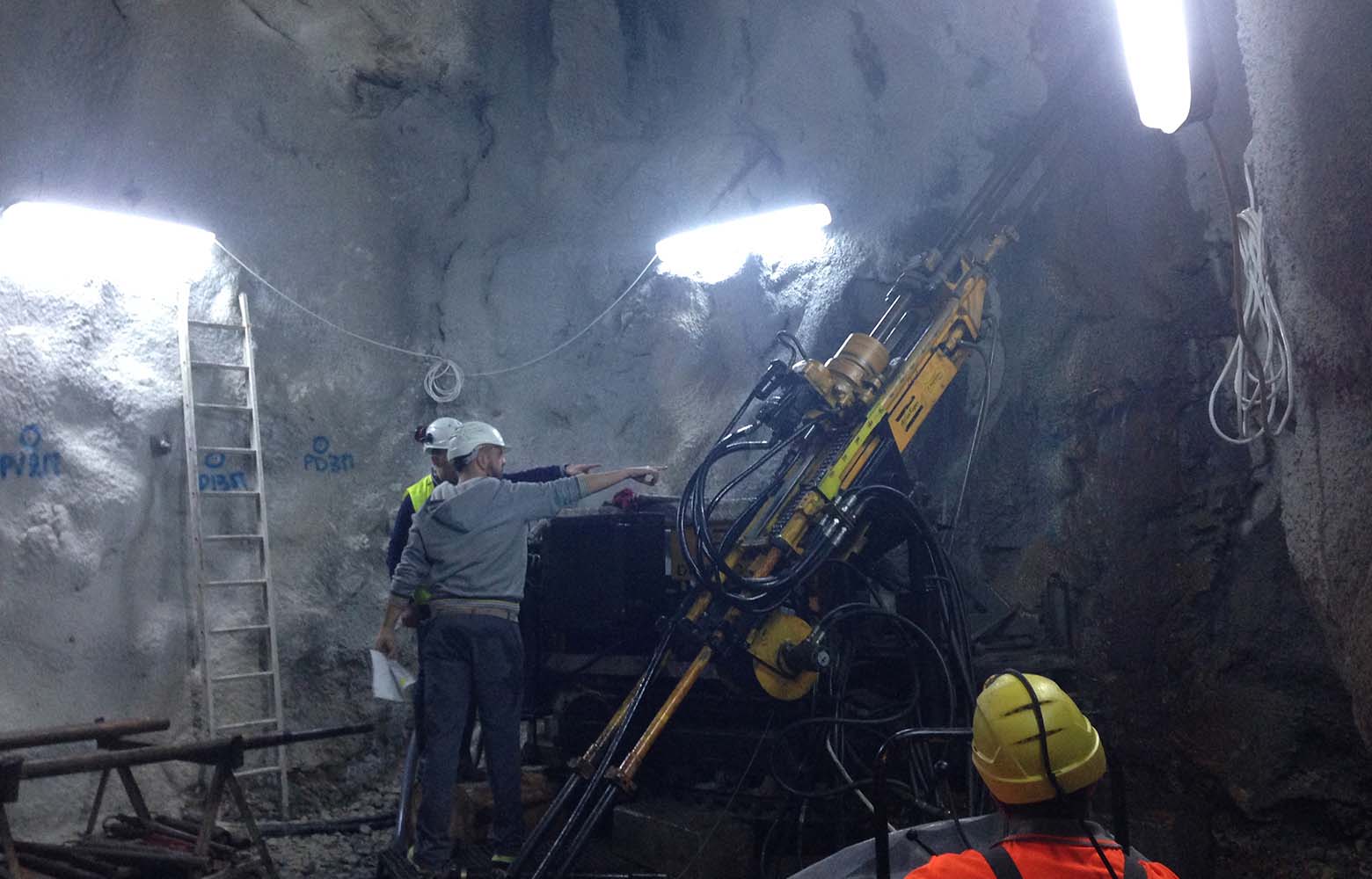

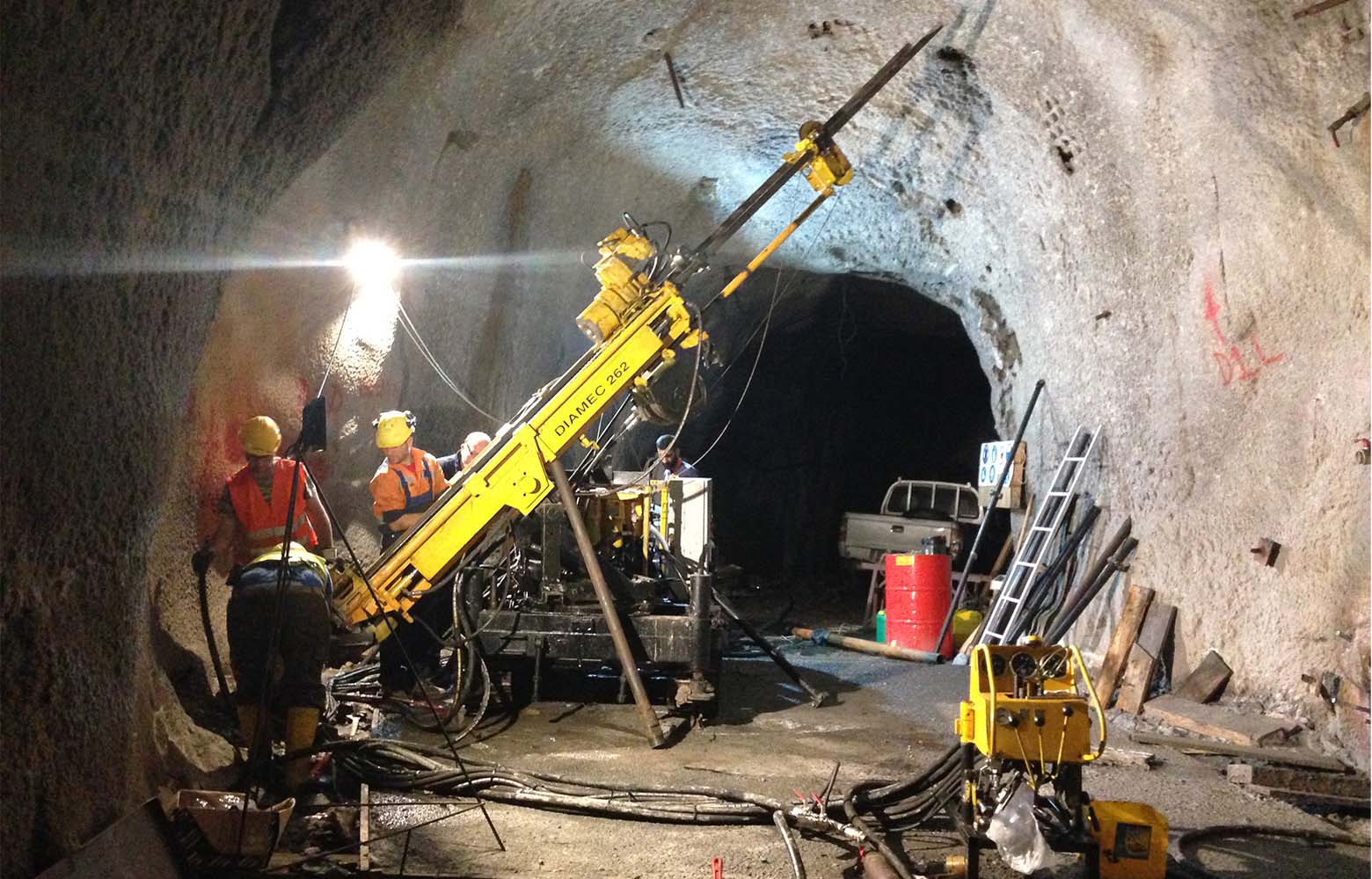

Atlas Copco Diamec 262

Atlas Copco Diamec 262Atlas Copco Diamec 262Atlas Copco Diamec 262

Rig Description

Diamec 262 is an all-hydraulic diamond core drill ideal for prospecting drilling below ground. Easy to handle and operate, the 262 can be set up to drill in different directions, both upward and downward facing.

  • Wireline
  • Skid
  • PQ, HQ, NQ

Atlas Copco Diamec 262 Specs

  • ABB MBT 225M / 52kW (69hp)
  • RPM : 1450
  • Electrical motor
  • Cooling : water type oil cooler
  • Max pull force : 65kN
  • Max holding force : 100kN
  • Feed length : 1800mm
  • Max torque : 1350Nm
  • Rotation speed : 900r/min
  • Mud pump : FMC Trido 80 (80lt/min, 70bar)
  • Drilling Capacity : 400m (ΝQ)
  • Drilling angle : 90 o to -90 o
